Why choose Dixon?

Quick Delivery • World Class Customer Service • Solutions Provider • Onsite Repair Available

DIXON_VALVES-153-Pano-Edit-vivid

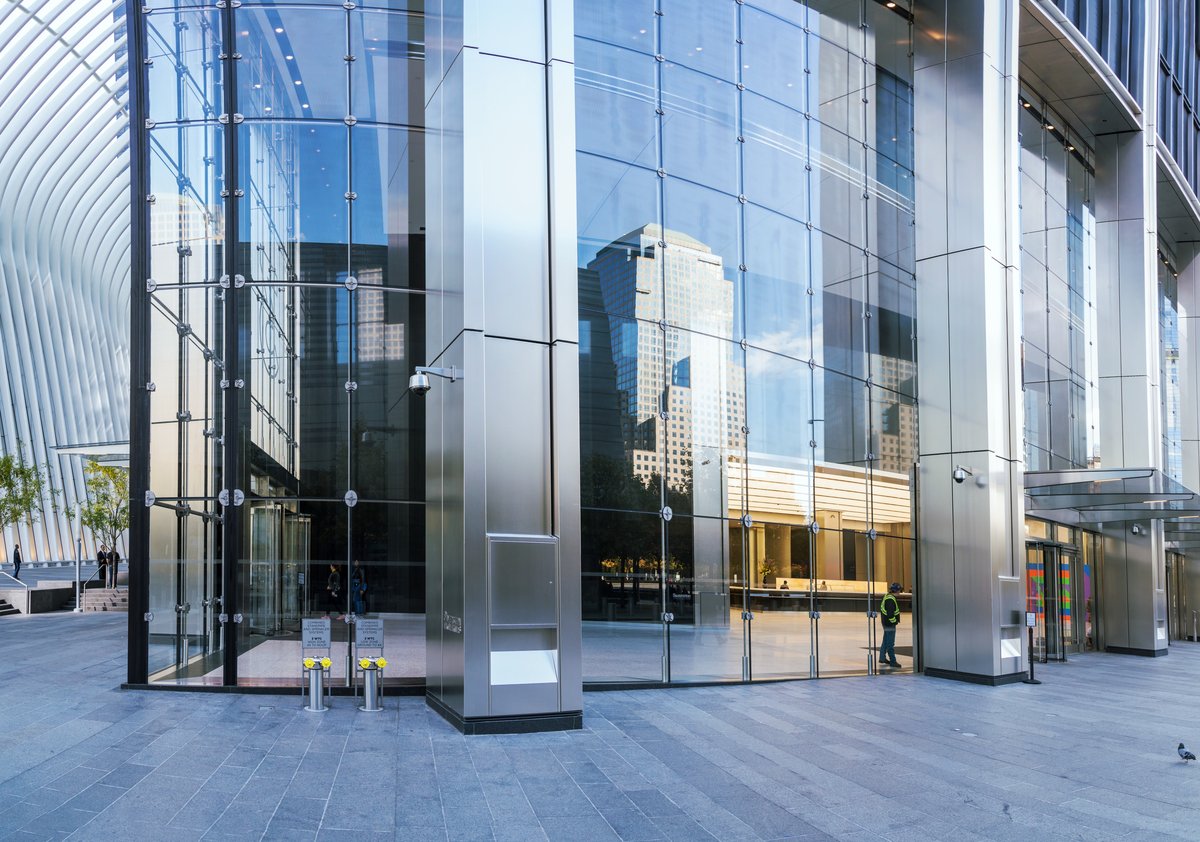

Dixon's stainless steel FDCs blend seamlessly with the glass and steel construction of 3 World Trade Center, an 80-story, LEED-certified Gold office tower that includes a major concentration of retail.

[fa icon="building"]

Designed for demanding high use applications

The NFPA requires a minimum fire department connection rating of 175 PSI, however most brass FDCs are currently rated at 300 PSI. The challenge is that at 300 PSI you can only get water to about 50 stories and, in most cases, pumper trucks must assist to achieve this level of pressure. The solution is Dixon Fire’s FM approved, 600 PSI, stainless steel FDC that can provide water up to 90 stories without auxiliary pumping systems.
[fa icon="flag"]

Manufactured in the USA

Dixon Fire designed and manufactured the high pressure FDC in the USA.
I've been doing business with Dixon for over 25 years. I will always be devoted to Dixon's quality and superior service.

Adam H. Mira Loma, CA

[fa icon="quote-right"]

DIXON_VALVES-278-Edit

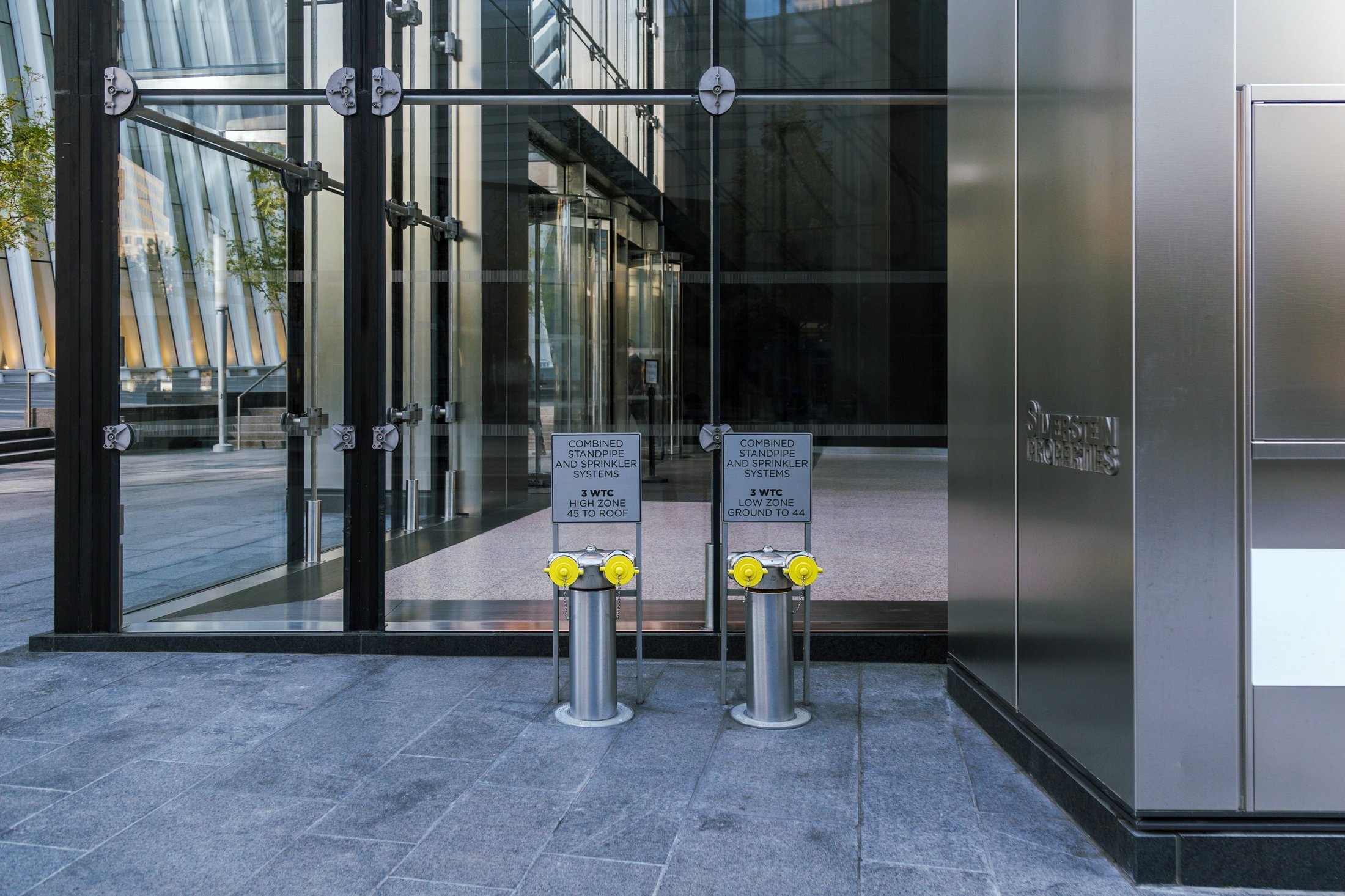

Pedestrians stroll Greenwich St. on the east side of the World Trade Center complex in New York, NY. Dixon's SS FDCs are part of the fire protection systems installed at this 2.5 million ft² building.

[fa icon="wrench"]

Features

Uniquely designed clappers are fully reversible with a perpendicular trunnion, allowing one body to be installed for top or bottom connections

Concealed unit mounts behind a wall plate; escutcheon sold separately for exposed installation

100% tested
[fa icon="check-square-o"]

Specifications and Approvals

4" x 2 ½”

Maximum pressure: 500 PSI
Factory Mutual approved

6" x 3"

Maximum pressure: 600 PSI
Factory Mutual and New York Fire Department approved



Click here for full parts list and accessories for the high-pressure FDC.
